Artículo no :
Coolworks Air Filter AF25618Orden (Moq) :
1Pago :
Please consultOrigen del producto :
ChinaColor :
CustomizablePuerto de envío :
CNYTN;CNSHK;CHNNS;CNHPU;SHANGHAI;QINGDAO,etcTiempo de entrega :
5-7 working daysPeso :
Please consult
![]() |
![]() |
| Air filter standard specification | ||||
| Air flow(m³/min) | OD d1(mm) | Flange d2(mm) | ID d3(mm) | Height h(mm) |
| 3.5 | 135 | 170 | 75 | 160 |
| 4.5 | 135 | 170 | 75 | 200 |
| 6.8 | 135 | 170 | 75 | 305 |
| 5.0 | 170 | 200 | 109 | 180 |
| 6.5 | 170 | 200 | 109 | 230 |
| 9.0 | 170 | 200 | 109 | 305 |
| 12 | 170 | 200 | 109 | 400 |
| 9.0 | 220 | 273 | 157 | 230 |
| 12 | 220 | 272 | 157 | 305 |
| 16 | 220 | 288 | 157 | 400 |
| 25 | 220 | 272 | 157 | 612 |
| 15 | 275 | 328 | 209 | 305 |
| 20 | 275 | 328 | 209 | 400 |
| 25.5 | 275 | 328 | 209 | 500 |
| 16 | 300 | 355 | 220 | 305 |
| 22 | 300 | 355 | 220 | 400 |
| 28 | 300 | 355 | 220 | 500 |
| 32 | 300 | 355 | 220 | 540 |
| 34 | 300 | 355 | 220 | 600 |
| 40 | 300 | 355 | 220 | 700 |
| 40 | 350 | 430 | 265 | 550 |
| 39 | 400 | 434 | 314 | 520 |
| 43 | 400 | 439 | 314 | 600 |
| 46.5 | 400 | 434 | 314 | 620 |
Xinxiang Coolworks air compressor filter, each product has undergone strict quality testing.

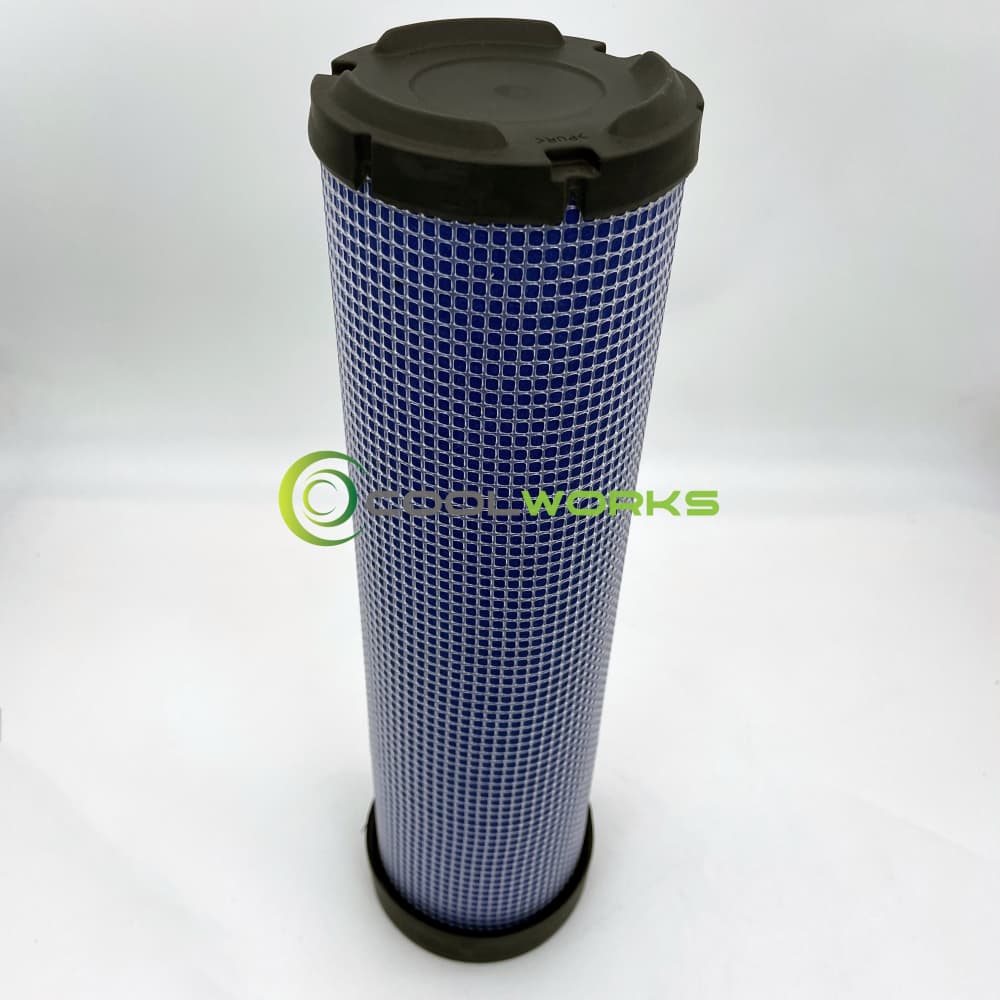

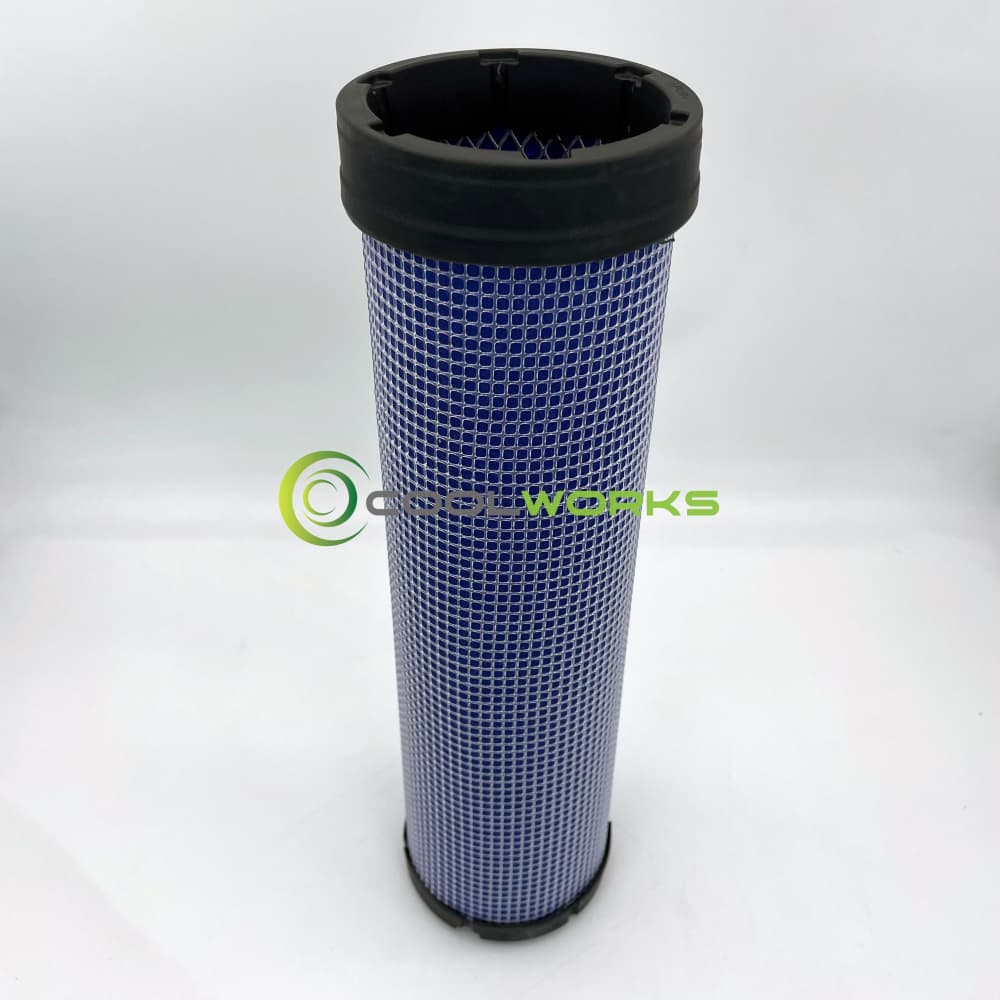

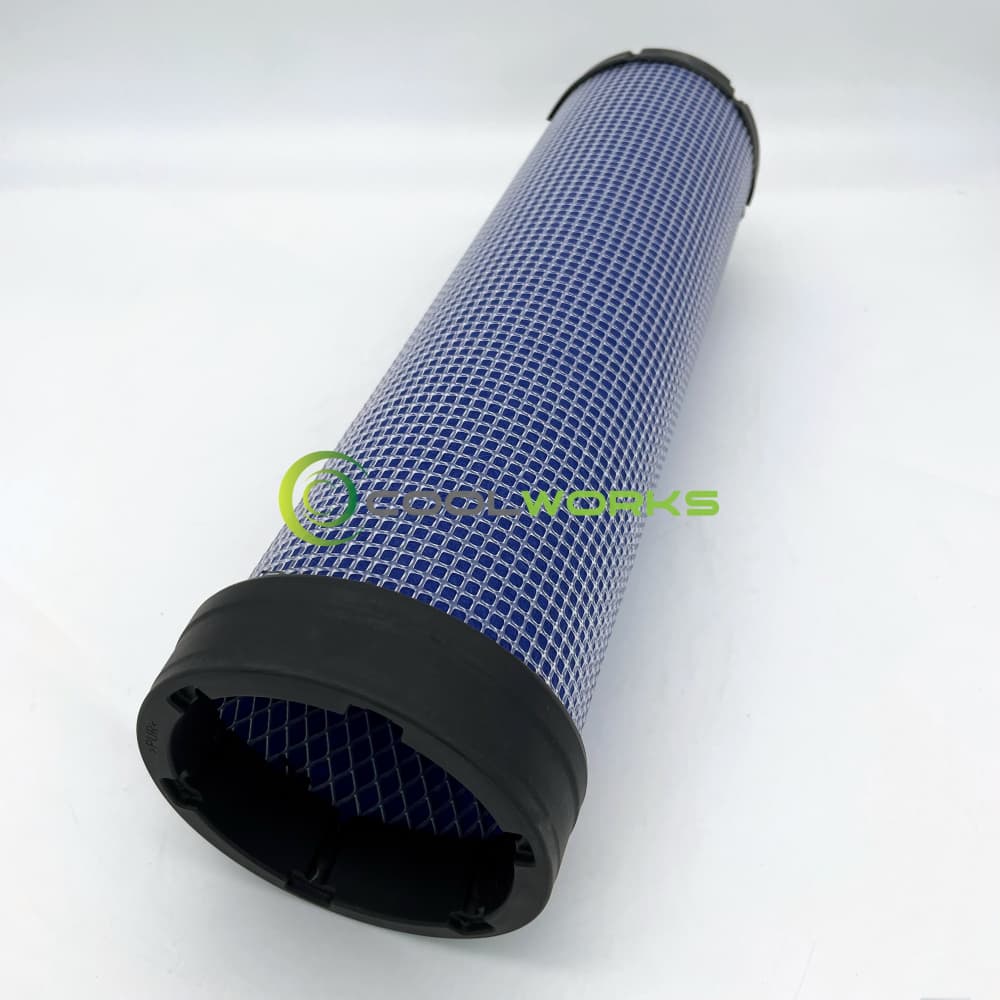

The AF25618 air filter cartridge is manufactured in our facility with a focus on efficient dust-holding capacity and robust construction.
This approach helps ensure consistent airflow while defending internal components from abrasive particles.
Our direct control over production means we can tailor the cartridge to your specific conditions.
Whether you operate in a high-dust environment or require a particular media efficiency, we can adjust the standard design—in dimensions, pleat count, or gasket type—to achieve more effective protection for your system.
Share your compressor model or current filter details with us for a tailored match.
